Facing issue while integrating bot with web/mobile client channel

[Subrahmanyam (Subrahmanyam Donepudi)]

@dan.stoddart You need not delete the channel though.Incase, if you want the channel to use another application which uses HS256 instead of RS256, you can create another application by selecting the HS256 alg and then associate the new app with the channel.

Below is the difference between RS256 and HS256 algorithms:
RS256 is an asymmetric algorithm, and it uses a public/private key pair: the identity provider has a private (secret) key used to generate the signature, and the consumer of the JWT gets a public key to validate the signature.
HS256 , on the other hand, is a symmetric algorithm, with only one (secret) key that is shared between the two parties

[siripurapurahul (Rahul Siripurapu)]

HI @swathi.vadlamani I am facing the issue while integrating the bot the error which i am facing is :
Error: Failed to lookup view “error” in views directory “C:\SDKApp\sdk”
at Function.render (C:\SDKApp\node_modules\express\lib\application.js:579:17)
at ServerResponse.render (C:\SDKApp\node_modules\express\lib\response.js:961:7)
at C:\SDKApp\app.js:55:7
at Layer.handle_error (C:\SDKApp\node_modules\express\lib\router\layer.js:71:5)
at trim_prefix (C:\SDKApp\node_modules\express\lib\router\index.js:310:13)
at C:\SDKApp\node_modules\express\lib\router\index.js:280:7
at Function.process_params (C:\SDKApp\node_modules\express\lib\router\index.js:330:12)
at IncomingMessage.next (C:\SDKApp\node_modules\express\lib\router\index.js:271:10)
at done (C:\SDKApp\node_modules\express\lib\response.js:956:25)
at Function.render (C:\SDKApp\node_modules\express\lib\application.js:581:14) ’

[yogaramya.mendu]

Hi @siripurapurahul,

We hope you have read the responses from the above thread.
Please go through the following solutions to resolve the error, however, this error shouldn’t be blocking the bot functionality.

Facing issue while integrating bot with web/mobile client channel

Hi @mitalee.jadhav, Please re-check if you have implemented the following steps as per the instructions: As mentioned on Step 17, you have downloaded the SDKApp. As mentioned on Step 19, you have configured the index.html. Try with “isAnonymous”: true also. As JWT URL try with http://localhost:3000/api/users/sts . Note: SDKApp and WebSDK are different. Please ensure that you have unzipped the content of WebSDK into SDKApp/sdk (example: Under C:\KoreWDSK\SDKApp\sdk you should be able to see …

And

Facing issue while integrating bot with web/mobile client channel

Mitalee, On the error that you are getting on console, it does not stop any connectivity to bot. In your case, you are probably serving the index.html as https://localhost:3000. You can try opening the index.html as a file (right click --> open with chrome etc.) and you will not see any error on console. Reasons for console error while serving a page could be (not limited to) the following: If you get error on line 2830 of chatWindow.js for initGapi() function, this is only google speech re…

Kindly implement as mentioned on the above responses and let us know if the issue is still persistent even after making the necessary changes.

Regards,
Yoga ramya.

[jonnathen.ravelo (Jon Ravelo)]

Heyo!

I was successfully able to follow the tutorial and connect to the sample Travel Application, but when i try to integrate with my Demo bot i am getting 401 errors.

I have triple checked my Bot_name, bot_id, client_id, and client_secret and gets rid of this error

Anyone know where else I should look?

[siripurapurahul (Rahul Siripurapu)]

Hi @yogaramya.mendu I am still not able to see chat window in the browser even after following the above steps can you please refer to my index.html and tell me if anything needs to be changed so that i could modify it accordingly i have tried different urls for each different url it is throwing different error

for url: http://localhost:3000/api/users/sts
The response in browser : respond with a resource.
The error in command prompt is :
Error: Failed to lookup view “error” in views directory “D:\dev\SDKApp\sdk”
at Function.render (D:\dev\SDKApp\node_modules\express\lib\application.js:579:17)
at ServerResponse.render (D:\dev\SDKApp\node_modules\express\lib\response.js:961:7)
at D:\dev\SDKApp\app.js:55:7
at Layer.handle_error (D:\dev\SDKApp\node_modules\express\lib\router\layer.js:71:5)
at trim_prefix (D:\dev\SDKApp\node_modules\express\lib\router\index.js:310:13)
at D:\dev\SDKApp\node_modules\express\lib\router\index.js:280:7
at Function.process_params (D:\dev\SDKApp\node_modules\express\lib\router\index.js:330:12)
at IncomingMessage.next (D:\dev\SDKApp\node_modules\express\lib\router\index.js:271:10)
at done (D:\dev\SDKApp\node_modules\express\lib\response.js:956:25)
at Function.render (D:\dev\SDKApp\node_modules\express\lib\application.js:581:14)

---

and for the url : http://demo.kore.net:3000/users/sts

I am not seeing any error in my command prompt

Output in the browser:

at /var/www/html/scripts/jwtservice/app.js:30:13
at Layer.handle [as handle_request] (/var/www/html/scripts/jwtservice/node_modules/express/lib/router/layer.js:95:5)
at trim_prefix (/var/www/html/scripts/jwtservice/node_modules/express/lib/router/index.js:312:13)
at /var/www/html/scripts/jwtservice/node_modules/express/lib/router/index.js:280:7
at Function.process_params (/var/www/html/scripts/jwtservice/node_modules/express/lib/router/index.js:330:12)
at next (/var/www/html/scripts/jwtservice/node_modules/express/lib/router/index.js:271:10)
at /var/www/html/scripts/jwtservice/node_modules/express/lib/router/index.js:618:15
at next (/var/www/html/scripts/jwtservice/node_modules/express/lib/router/index.js:256:14)
at Function.handle (/var/www/html/scripts/jwtservice/node_modules/express/lib/router/index.js:176:3)
at router (/var/www/html/scripts/jwtservice/node_modules/express/lib/router/index.js:46:12)

[siripurapurahul (Rahul Siripurapu)]

@swathi.vadlamani
We are using travel planning sample bot for practicing the chatbot implementation with sdkApp.
we chose HS256 algorithm and jwtURL as “http://localhost:3000/api/users/sts”. we are getting following error in node console. browser is displaying “respond with a resource” message.

Failed to lookup view “error” in views directory “D:\dev\SDKApp\sdk”.

Even we tried with “http://demo.kore.net/users/sts” but no luck. This time browser is displaying follwoing message “Cannot GET /users/sts”

Can you please help me in resolving this issue.

Thanks in advance

[yogaramya.mendu]

Hi @siripurapurahul,

Your query has been answered in the following post:

Unable to integrate the chatbot with the client/Mobile Channel Please Help us

We are using travel planning sample bot for practicing the chatbot implementation with sdkApp. we chose HS256 algorithm and jwtURL as “http://localhost:3000/api/users/sts”. we are getting following error in node console. browser is displaying “respond with a resource” message. Failed to lookup view “error” in views directory “D:\dev\SDKApp\sdk”. Even we tried with “http://demo.kore.net/users/sts” but no luck. This time browser is displaying follwoing message “Cannot GET /users/sts” Can you p…

Regards,
Yoga Ramya.

[siripurapurahul (Rahul Siripurapu)]

Hi @yogaramya.mendu @swagata.sengupta Thanks a lot for helping integrating the chat bot in the web /client channel Now i am trying to integrate the chat bot with online REST service as a Action Task .
The API Request Url is : http://dummy.restapiexample.com/api/v1/employee/16332,

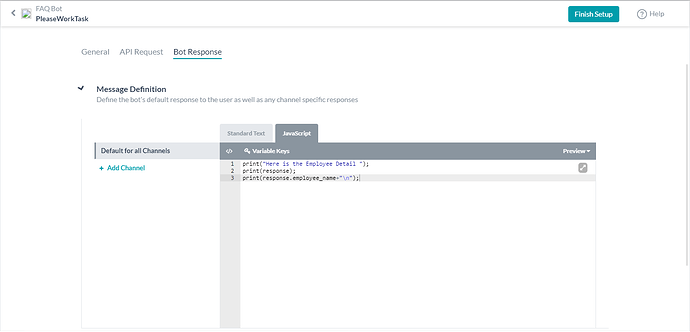

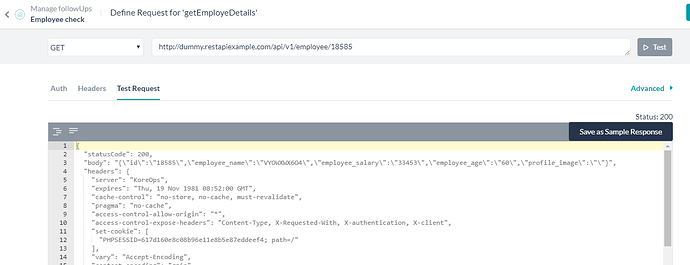

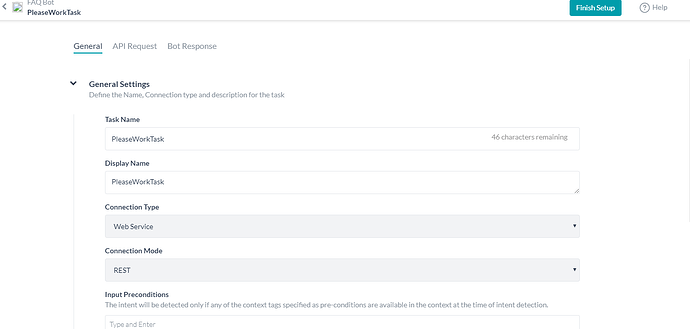

Please find the screenshots how i have tried to integrate the Service:

While coming to the Authorization I have given it as none and i didnt define any parameters for the service as they are not required even if everything is fine I am getting this particular error in the output. Please find the screenshot of the error:

Can you guys please help me in that I am really struck with it .

Thanks in advance

[Subrahmanyam (Subrahmanyam Donepudi)]

I’ve checked the response of this endpoint and see the content-type coming in text/html; charset=UTF-8 format.

Could you please use a Dialog Task instead of the Action task to achieve this requirement?

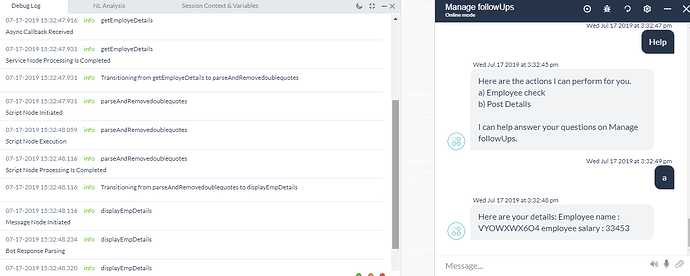

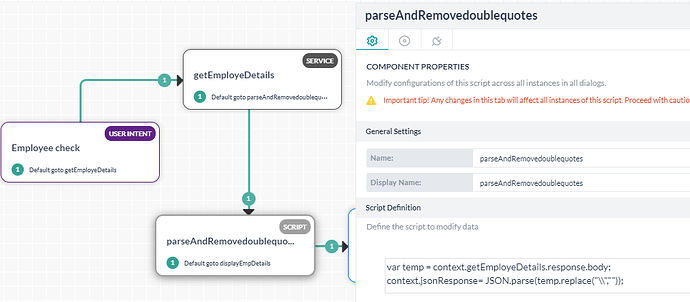

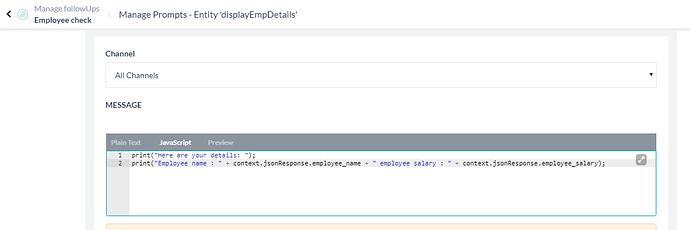

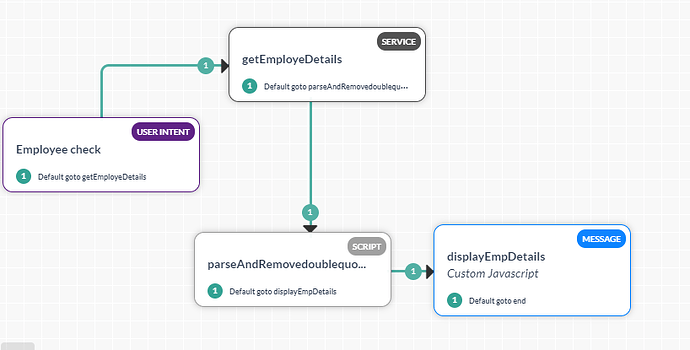

Please refer to the below snips which could guide you on building a dialog task to achieve the same.

[siripurapurahul (Rahul Siripurapu)]

@Subrahmanyam Thanks a lot for the immediate reponse It helped me a lot.

[siripurapurahul (Rahul Siripurapu)]

@Subrahmanyam Hi Is there any possibility in Kore.AI that the bot returns a word document based on a Task If possible can you please help me in that through the steps.

Thanks in advance

[Subrahmanyam (Subrahmanyam Donepudi)]

Please refer to the below topic

Can Kore.AI return a Word/PDF document as a reponse Can you please help us?

Is the document URL publicly available? If the document URL is publicly available and if you would need to show the image of the document along with link to access the document, please use service node of “URL to image” and configure the message node to present the image and URL in it. Please check if the below configuration could help. (I am using the URL of a google doc which can be publicly accessed) [image] [image] [image] [image] [image] [image]

[ashwini.wannalikar]

Hello
I have followed all the steps including starting startServer.js and I could load the chat window through http://localhost:3000/UI/ successfully. However I am not able to load it through clicking on index.html. I want to add index.html to another application and execute.
Issue in browser on inspecting is:

Access to XMLHttpRequest at ‘http://localhost:3000/api/users/sts’ from origin ‘null’ has been blocked by CORS policy: No ‘Access-Control-Allow-Origin’ header is present on the requested resource

Please help me resoliving this issue. Thanks!

[swagata.sengupta (Swagat)]

Please check Facing issue while integrating bot with web/mobile client channel

[ashwini.wannalikar]

Ok Thanks for the help.

[priyanshuwwg (Priyanshu Shukla)]

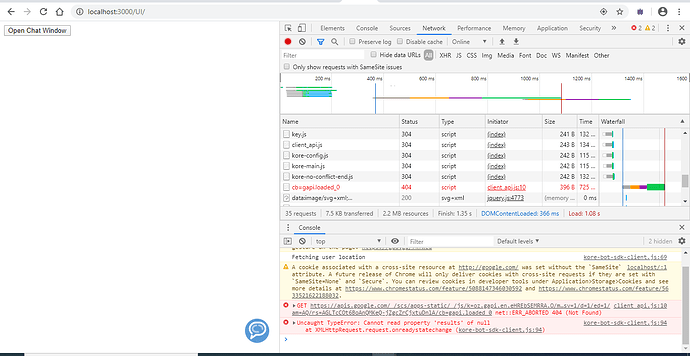

Hi, i am getting the below issues:

GET https://apis.google.com//scs/apps-static//js/k=oz.gapi.en.eHREbSEMRRA.O/m=client/rt=j/sv=1/d=1/ed=1/am=AQ/rs=AGLTcCOt6BoAnQMKeQ-jZgcZrCjxtuDnlA/cb=gapi.loaded_0 net::ERR_ABORTED 404 (Not Found)

2. A cookie associated with a cross-site resource at http://google.com/ was set without the SameSite attribute. A future release of Chrome will only deliver cookies with cross-site requests if they are set with SameSite=None and Secure. You can review cookies in developer tools under Application>Storage>Cookies and see more details at https://www.chromestatus.com/feature/5088147346030592 and https://www.chromestatus.com/feature/5633521622188032.

For 2. this i tried

  var token = jwt.sign(options, clientSecret);
  res.header(‘Access-Control-Allow-Origin’, “*”);
  res.send({“jwt”:token});

But getting the same issue

[krutika.shekhar]

Hi Swathi,

I am trying to integrate web-kore-sdk in my React web application. I have created the chatwindow in React i want to initialize the bot and display the botMessages in my chatwindow. Can u please guide me in this. So for I have done the bot configuration on click of a button and opening the chat window. But the bot is not getting initialized

[yogaramya.mendu]

Hi @krutika.shekhar,

Please send us the relevant screenshots to understand the issue.
Also, let us know if you have configured the web/mobile client channel in bot builder.

Regards,
Yoga Ramya
