How to get API response into list, so that user can select any one of them

XO Platform APIs and SDKs
1

I got the response data from API through GET method. I got multiple records into json format. Now i want to select some specific items so that user can select any one of them by clicking on it.
(As we give multiple items in list.)
For Ex:
From the below API Response, i want to put all the “description” in one list. & all the descriptions should be clickable.

{
  "statusCode": 200,
  "body": {
    "result": [
      {
        "number": "INC0000060",
        "sys_created_on": "2016-12-12 15:19:57",
        "resolved_at": "2016-12-13 21:43:14",
        "subcategory": "email",
        "short_description": "Unable to connect to email",
        "description": "mobile",
        "calendar_duration": "1970-01-02 04:23:17",
        "close_notes": "This incident is resolved.",
        "notify": "1",
        "sys_class_name": "incident"
      },
      {
        "number": "INC0000065",
        "sys_created_on": "2016-12-12 15:19:57",
        "resolved_at": "2016-12-13 21:43:14",
        "subcategory": "hardware",
        "short_description": "mouse not working properly",
        "description": "mouse issue",
        "calendar_duration": "1970-01-02 04:23:17",
        "close_notes": "This incident is resolved.",
        "notify": "1",
        "sys_class_name": "incident"
      },
      {
        "number": "INC0000072",
        "sys_created_on": "2016-12-25 15:19:57",
        "resolved_at": "2016-12-27 21:43:14",
        "subcategory": "login",
        "short_description": "forgot password",
        "description": "login issue",
        "calendar_duration": "1970-01-02 04:23:17",
        "close_notes": "This incident is resolved.",
        "notify": "1",
        "sys_class_name": "incident"
      },
      {
        "number": "INC0000079",
        "sys_created_on": "2016-12-12 15:19:57",
        "resolved_at": "2016-12-13 21:43:14",
        "subcategory": "email",
        "short_description": "Unable to connect to email",
        "description": "mobile",
        "calendar_duration": "1970-01-02 04:23:17",
        "close_notes": "This incident is resolved.",
        "notify": "1",
        "sys_class_name": "incident"
      },
      {
        "number": "INC0000088",
        "sys_created_on": "2016-12-27 15:19:57",
        "resolved_at": "2016-12-28 21:43:14",
        "subcategory": "update mobile",
        "short_description": "want to update my mobile no.",
        "description": "update mobile",
        "calendar_duration": "1970-01-02 04:23:17",
        "close_notes": "This incident is resolved.",
        "notify": "1",
        "sys_class_name": "incident"
      }
    ]
  },
  "headers": {
    "x-is-logged-in": "true",
    "x-transaction-id": "645d815adbde",
    "link": "<https://dev82648.service-now.com/api/now/table/incident"
    "x-total-count": "127",
    "content-type": "application/json;charset=UTF-8",
    "transfer-encoding": "chunked",
    "date": "Tue, 14 Jan 2020 12:43:52 GMT",
    "server": "ServiceNow",
    "connection": "close",
    "strict-transport-security": "max-age=63072000; includeSubDomains"
  }
}
2

We will leave the programming (getting “descriptions” iteratively from JSON array) on you. :slight_smile:

Once you have the list, use a button template/ quick reply template in message node so that you can have them clickable. Please see relevant documentation on templates.

3

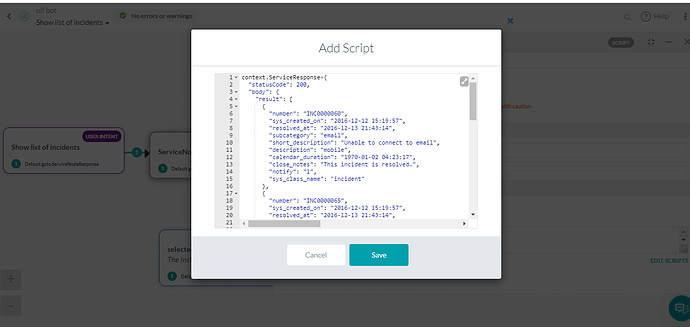

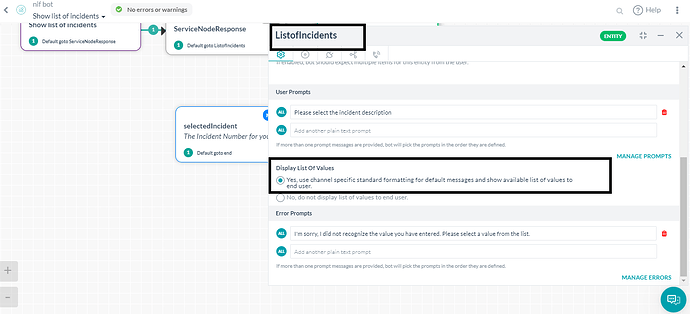

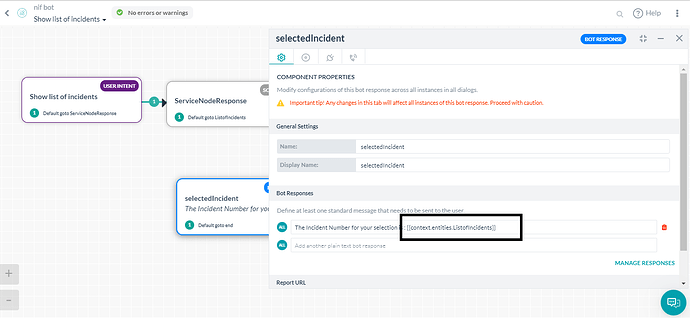

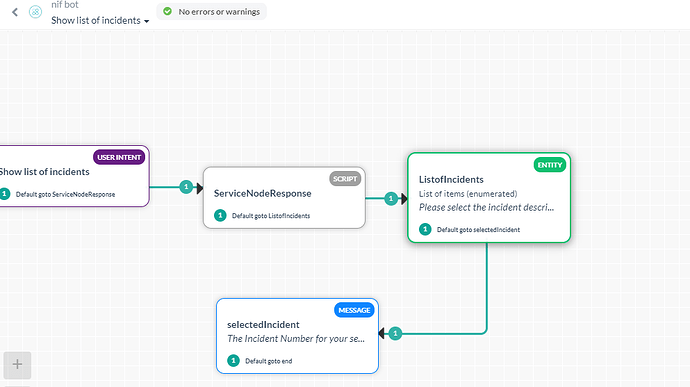

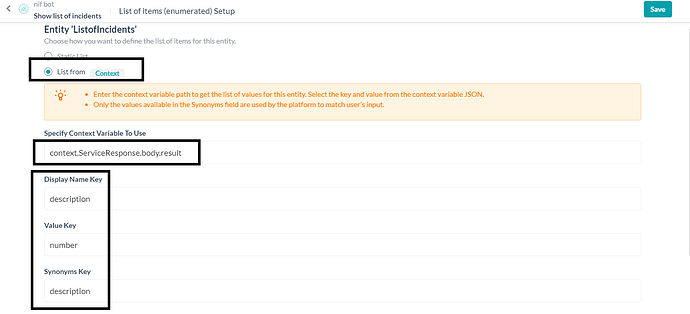

@priyanshuwwg Use the entity type List of items enumerated to present the list to users. Please check if the below configuration could help.








2 Likes
4

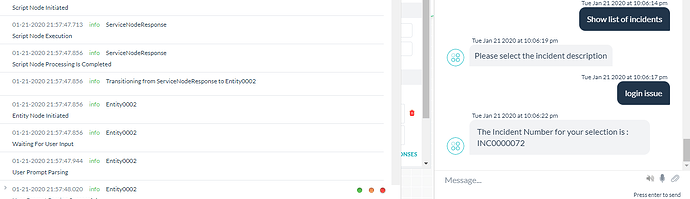

Thanks for your help. I have followed your step & got the items into list. The output is showing like this…MicrosoftTeams-image

But it is showing only 5 items as clickable buttons. But in result it is more than 5.
So how to show all values in list?

5

Well the template presented should be based on the number of items you have in the list. For instance, if the list contains more than 10 items , a text template is presented and if the list contains only 2 or 3 items in it, may be a button template and so on.

Post your service response body here and I’ll have it looked into.

1 Like
6

I am not able to get into list using this method, sometime it comes, sometimes it dosent

1 Like
